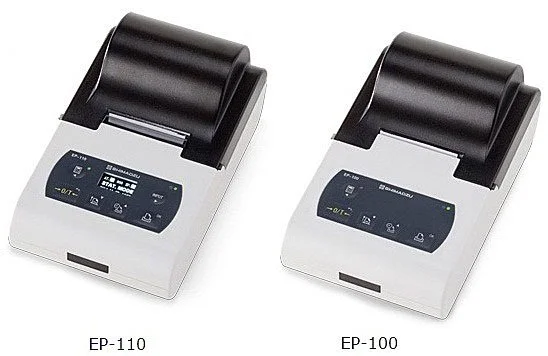

SHIMADZU | EP-100/EP-110

$0.00

EP-110/EP-100 Features

Built-In Clock

Enables printing time and date information even with a balance that doesn't have a clock function.

Enhanced Support for ISO/GLP

EP-100 can output time/signature information. In addition to this information, EP-110 can output other information based on your demands together with measured values. See samples below for details.

OLED Dot Matrix Display (EP-110 only)

Offers an easy-to-read, brightly illuminated OLED display.

Automatically Set

Automatically sets the appropriate communication with a balance. An operator doesn't have to worry about its setting.

EP-110 Provides further applications

  • Pipette calibration
    Calibrate capacity of pipette and flask

  • User-defined calculation
    Operator can set coefficients
    (handy for converting result to local unit)

  • Tare/Net/Gross weight printing
    Print out Tare/Net/Gross weight separately

  • SUM mode
    Print out the total values of samples

  • Averaging mode
    Print out the average of samples

  • Formulation mode
    Print out each sample's weight independently when blending samples

  • Comparator mode
    Print out result whether weight of sample is within target range

  • Interval printing mode
    Print out current weight at a regular interval

SPECS EP-100:

Printing : Method

8-pin reciprocating impact dot matrix

Printing : Speed

Approx. 1.7 lines/sec. Printer head life
1 million linesCharacter size
Approx. W1.7 mm × H2.6 mm

Interface

RS-232 DB9

Power Supply : AC adapter

Input 100 to 240 V AC, 50/60 Hz; Output 12 V DC /1500 mA

Power Supply : Power consumption

8 W (while printing)Standby power
0.5 W (when not printing)

Installation Environment

Temperature 5 to 45 °C, humidity 10 to 80 % No condensation

SPECS EP-110

Display

OLED 128 x 64 Dot Matrix Display

Protected Date Setting

Prevents unintended changes of time and date setting.

Printing : Method

8-pin reciprocating impact dot matrix

Printing : Speed

Approx. 1.7 lines/sec. Printer head life
1 million linesCharacter size
Approx. W1.7 mm × H2.6 mm

Interface

RS-232 DB9

Power Supply : AC adapter

Input 100 to 240 V AC, 50/60 Hz; Output 12 V DC /1500 mA

Power Supply : Power consumption

8 W (while printing)Standby power
0.5 W (when not printing)

Installation Environment

Temperature 5 to 45 °C, humidity 10 to 80 % No condensation
